Vertical Bucket Elevator
A vertical bulk material-handling system built from a modular, white powder-coated steel column enclosure, internal high-tensile belts, and reinforced buckets. It moves grain continuously and gently between factory floors, feeding the gravity-fed machines above without degrading the kernel. The enclosed casing keeps the product contained and the plant tidy.
What sets this machine apart.
Continuous vertical lift
Reinforced buckets on a high-tensile belt deliver a steady, high-throughput stream between decks.
Modular column casing
Bolt-together powder-coated sections set the lift height to match your building, then seal the product inside.
Gentle on grain
Matched belt speed and bucket geometry minimise cracking and breakage during transport.
Inspection & access
Service doors and tensioning at the boot make belt checks and adjustment straightforward.
Specifications
- Function
- Vertical grain transport
- Casing
- Modular powder-coated steel
- Drive
- High-tensile belt + buckets
- Travel
- Floor-to-floor, configurable height
- Pairs with

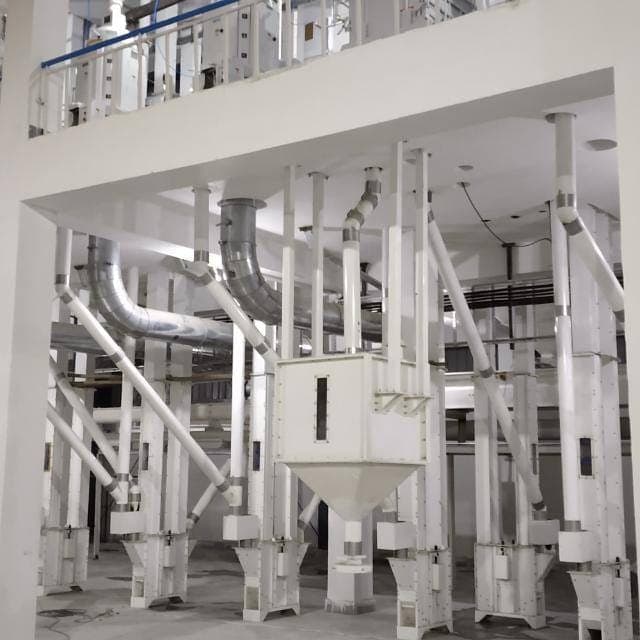

- Gravity spouting & flow splitters
Typical applications
- Lifting grain between mill floors
- Feeding overhead drop-points and silos
- Inter-stage handling across the line
Need this configured to your throughput, crop, and footprint? Our team will spec it for your line.
